| Application | Electricity distribution |
|---|---|
| Shape | Conoid, Multi-pyramidal, Columniform, polygonal or conical |
| Material |
Usually Q345B/A572, minimum yield strength>=345n/mm2 Q235B/A36, minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490 |
| Tolerance of dimension | +- 2% |
| Power | 10 KV ~550 KV |
| Safety Factor |
Safety factor for conducting wire: 8 Safety factor for grounding wire: 8 |
| Design Load in Kg | 300~1000 Kg applied to 50cm from the top pole |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester powder or any other standard by client required |
| Joint of Poles | Insert mode, inner flange mode, face to face joint mode |
| Wind Speed | 160 Km/Hour (30 m/s) |
| Standard | ISO 9001 |
| Welding |
We have passed flaw testing. Internal and external double welding makes the welding beautiful in shape. Welding Standard: AWS (American Welding Society) D 1.1 |
| Galvanization | Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985 |
| Thickness | 1 mm to 30 mm |
| Production Process | Raw material test → Cutting → Molding or bending → Welding (longitudinal) → Dimension verify → Flange welding → Hole drilling → Calibration → Deburr → Galvanization or powder coating, painting → Recalibration → Thread → Packages |

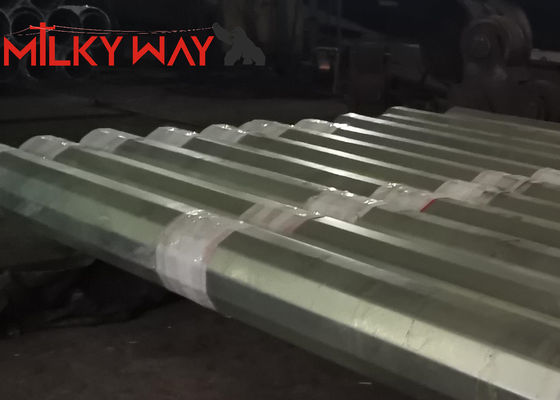

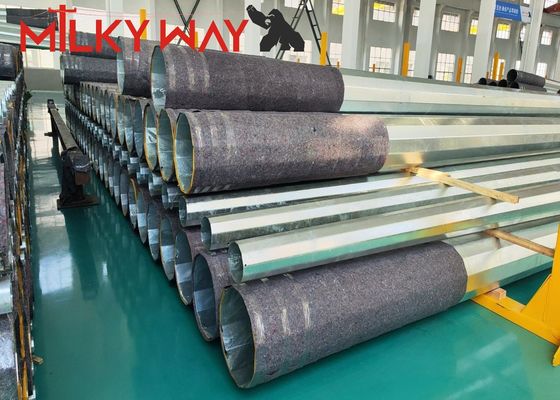

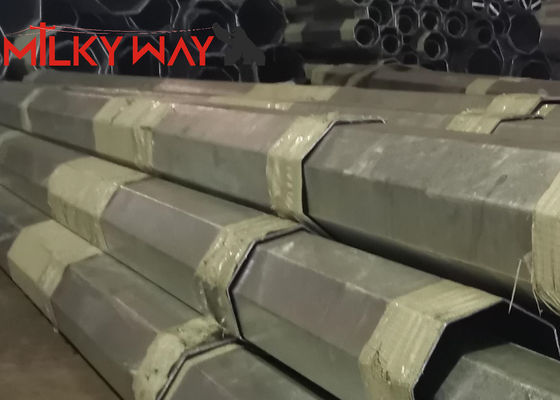

| Packages | Our poles are normally covered by Mat or straw bale at the top and bottom, but can also follow client requirements. Each 40HC or OT loading capacity will be calculated based on the client's actual specifications and data. |
Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, East of China, near one of the largest sea ports of China, Shanghai Port. Our products have been widely used in power transmission, signal transmission and lighting for street, road, square, palaestra, and more.
We have extensive export experience. Since our first overseas order from Pakistan in 1991 of 132 KV transmission poles, our products have been delivered to more than 70 countries and areas, including America, Australia, Russia, Germany, Spain, Philippines, Malaysia, Dominica, Congo, Togo and Guinea.
