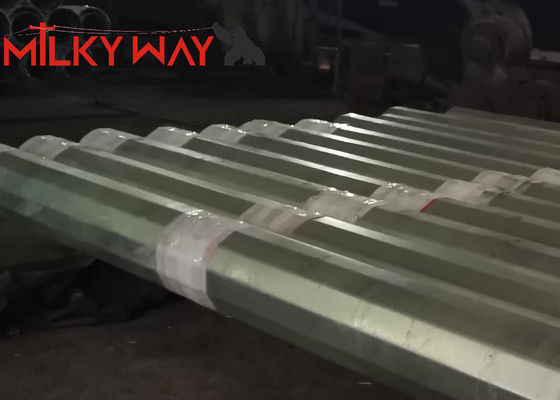

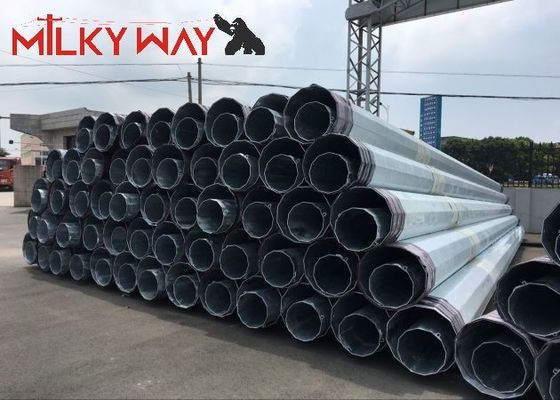

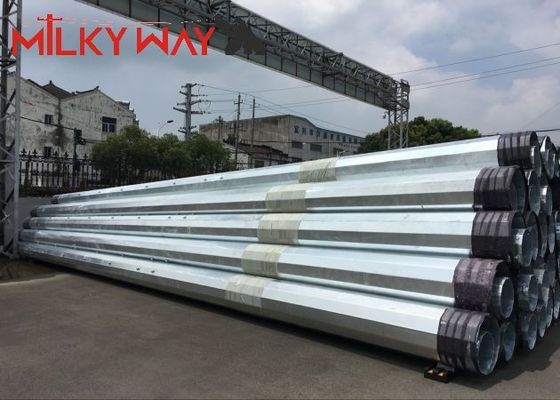

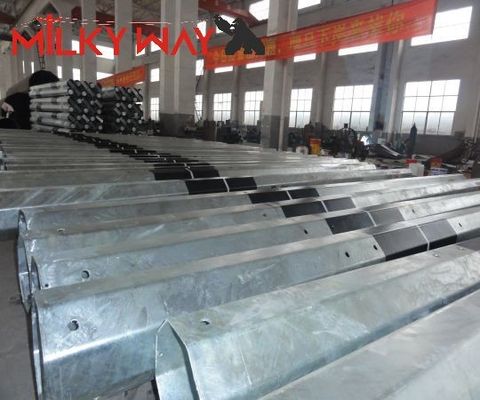

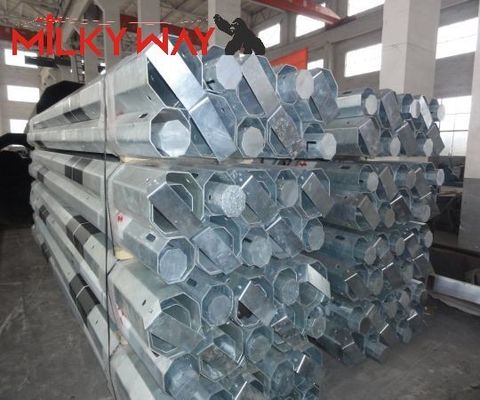

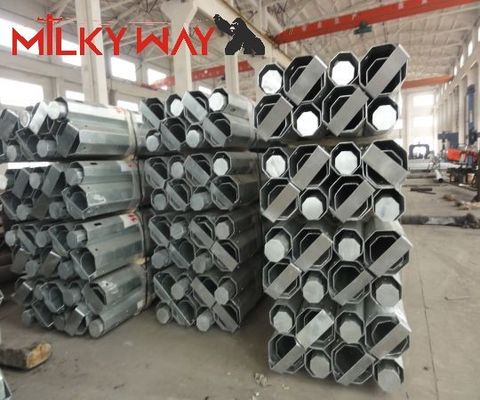

Gr65 Material Steel Power Pole with 460 MPa Yield Strength and 620 MPa Tensile Strength for High Voltage Transmission
Gr65 Material Steel Power Pole with 460 MPa Yield Strength and 620 MPa Tensile Strength for High Voltage Transmission
基本プロパティ
原産地:
中国
ブランド名:
MilkyWay
認定:
ISO9001/BV/
モデル番号:
鋼鉄電柱
取引物件
最低注文数量:
1個のPC
価格:
交渉可能
支払い条件:
T/T、L/Cは見えます
補給能力:
1日あたりの300pcs
製品概要
35FT 70FT 90FT Bitumen Coated Steel Power Pole for High Voltage Power Transmission Line Product Specifications Types Length 45ft (13.75m) 50ft (15.25m) 55ft (16.80m) 60ft (18.30m) 65ft (19.85m) 70ft (21.35m) B (0°-2°) Top diameter (mm) 200 200 200 200 200 200 Butt diameter (mm) 345 370 395 415 435 ...
製品カスタム属性
ハイライト
Gr65 Material Steel Power Pole
,460 MPa Yield Strength Electric Transmission Pole
,620 MPa Tensile Strength Galvanized Steel Pole
製品名:
鋼鉄電柱
アプリケーション:
配電
材料:
Gr65
最低の降伏強さ:
460Mpa
最高の最終的な引張強さ:
620 mpa
壁の厚さ:
1mm-36mm
製品説明
詳細な仕様と特徴
35FT 70FT 90FT Bitumen Coated Steel Power Pole for High Voltage Power Transmission Line
Product Specifications
| Types Length | 45ft (13.75m) | 50ft (15.25m) | 55ft (16.80m) | 60ft (18.30m) | 65ft (19.85m) | 70ft (21.35m) |
|---|---|---|---|---|---|---|
| B (0°-2°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 345 | 370 | 395 | 415 | 435 | 455 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| E (2°-15°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 545 | 585 | 625 | 660 | 700 | 740 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| C (15°-30°) | ||||||
| Top diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
| Butt diameter (mm) | 600 | 645 | 690 | 730 | 770 | 805 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| D (30°-90°) | ||||||
| Top diameter (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
| Butt diameter (mm) | 680 | 730 | 725 | 765 | 755 | 790 |
| Thickness (mm) | 6 | 6 | 7 | 7 | 8 | 8 |
Material Description
- Poles are made by high-quality metal plants, molded into multi-row cone-shaped vertical steel bars with hot galvanized anti-corrosion treatment
- Light plate frame is made of high-quality stainless steel
- Fastened with stainless steel bolts and nuts
Our Services
1. Reply to your inquiry within 24 working hours
2. Experienced staff answer all questions in fluent English
3. Customized designs available (UEM&UBM welcomed)
4. Exclusive solutions provided by professional engineers
5. Special discounts and sales protection for distributors
6. Professional manufacturer with 20+ years experience in steel pole production
7. Samples available for testing (shipping charges may apply)
8. Superior raw materials and advanced manufacturing processes ensure high quality
Company Introduction
Jiangsu Milky Way Steel Poles, established in 1991 and located in Wuxi, China near Shanghai Port, specializes in manufacturing steel poles including transmission power poles, street light poles, and high mast poles.
With 24 years of experience, we have exported to over 70 countries including America, Australia, Russia, Germany, Spain, Philippines, Malaysia, and Africa.
Notable projects include supplying street light poles for Dubai Tower and high mast poles for the Sochi Winter Olympic Games.
