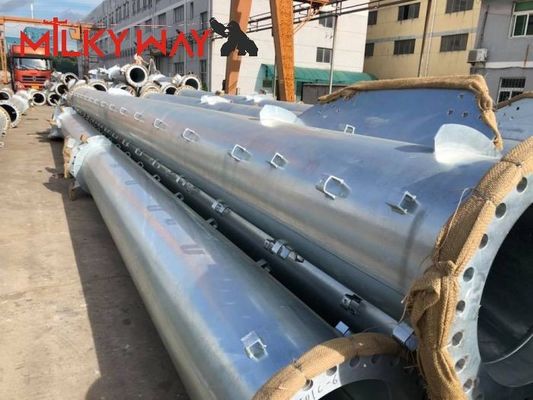

Galvanized Steel Transmission Power Pole with 15M Length, 15 Years Warranty, and 1mm to 36mm Thickness for Power Transmission
15M Length Transmission Power Pole
,15 Years Warranty Steel Power Pole
,1mm to 36mm Thickness Galvanized Power Pole
All materials are sourced from renowned mill factories to ensure superior quality. A certified mill certificate with official stamp and signature must accompany each delivery before unloading at our facility.
Prior to production, all materials undergo rigorous chemical and physical analysis to verify compliance with required strength specifications and component standards.
| Types Length | 45ft 13.75m |
50ft 15.25m |
55ft 16.80m |
60ft 18.30m |
65ft 19.85m |
70ft 21.35m |
|---|---|---|---|---|---|---|
| B (0°-2°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 345 | 370 | 395 | 415 | 435 | 455 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
- Component Length: -25mm to 75mm
- Straightness: 2mm/m
- Twisting degree: 1° per 3 meters length
- Ovalisation: Maximum 3%
- Average diameter: +/-0.5%
- Slip length: +/-150mm
Our welding processes have passed rigorous flaw testing. We employ internal and external double welding techniques that produce structurally sound and aesthetically pleasing welds.
Welding Standard: AWS (American Welding Society) D 1.1
Hot dip galvanized following ASTM A 123 standards. Custom color polyester powder coating or other client-requested finishes available.
Jiangsu Milky Way Steel Poles, established in 1991, is located in Wuxi, Eastern China, near Shanghai Port - one of China's largest seaports.
With over 30 years of experience in steel pole manufacturing, we specialize in transmission power poles, street light poles, and high mast poles.
Our products have been exported to more than 70 countries worldwide, including the USA, Australia, Russia, Germany, Spain, Philippines, Malaysia, and various African nations.
We have supplied major international projects including street light poles for Dubai Tower and high mast poles for the Sochi Winter Olympic Games.
