15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines
基本プロパティ
原産地:
江蘇、中国
ブランド名:
MilkyWay
モデル番号:
スチール電極、電極
取引物件
最低注文数量:
100
価格:
$99-120
製品概要
15m Tapered Steel Utility Power Poles 2.75mm Thickness | 850kg Load Capacity | 11M 13.5KN | 12.5M 12KN | 12.5M 16KN | 12.5M 24KN Product Specifications Type Octagonal NGCP 69KV Galvanized electric steel power pole Application Electricity distribution Shape Conoid, Multi-pyramidal, Columniform, ...
製品カスタム属性
ハイライト
15m Steel Utility Power Pole
,2.75mm Thickness Steel Utility Power Pole
,850kg Load Steel Utility Power Pole
定格電流:
10-200
定格電圧:
10-220
表面処理:
熱浸しガルバニゼーション
サイズ・トレランス:
+ - 2%
溶接の標準:
AWS D 1.1
亜鉛めっきの標準:
ASTM A 123
生産力:
1日あたりの300部分
材料:
Q345B/A572、Q235B/A36、Q460、ASTM573 GR65、GR50、SS400、SS490、ST52
電力範囲:
10KV~550KV
安全因子:
ワイヤーを導入するために8、接地ワイヤー用8
設計負荷:
上部ポールから50cmに適用された300〜1000 kg
風速:
160 km/時（30 m/s）
最低の降伏強さ:
355 MPa
最低引張強さ:
490 MPa
最大張力強度:
620 mpa
製品説明
詳細な仕様と特徴

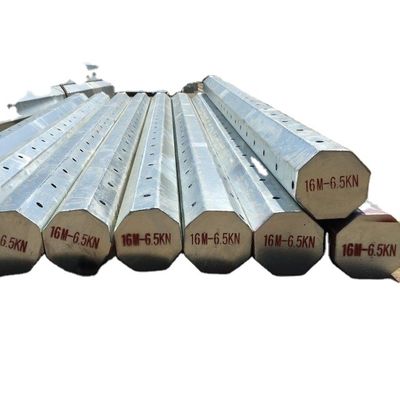

15m Tapered Steel Utility Power Poles
2.75mm Thickness | 850kg Load Capacity | 11M 13.5KN | 12.5M 12KN | 12.5M 16KN | 12.5M 24KN
Product Specifications
| Type | Octagonal NGCP 69KV Galvanized electric steel power pole |
|---|---|
| Application | Electricity distribution |
| Shape | Conoid, Multi-pyramidal, Columniform, Polygonal or Conical |
| Material | Q345B/A572 (minimum yield strength ≥345N/mm²), Q235B/A36 (minimum yield strength ≥235N/mm²), Q460, ASTM573 GR65, GR50, SS400, SS490, ST52 |
| Power Rating | 10KV ~550KV |
| Safety Factor | 8 for conducting wire, 8 for grounding wire |
| Design Load | 300~1000kg applied to 50cm from top pole |
| Surface Treatment | Hot dip galvanized (ASTM A 123) or color polyester powder coating |
| Wind Resistance | 160 km/hour (30 m/s) |
| Standards | ISO 9001 |

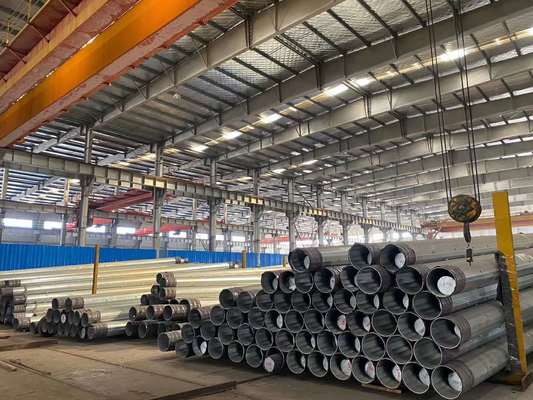

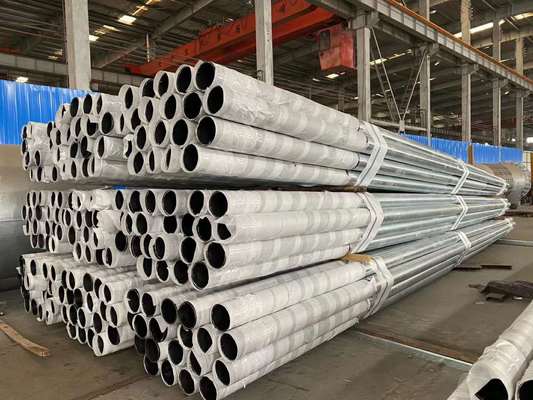

Production Process
As a BV, ISO, SGS approved supplier in China with over 20 years of experience, we guarantee high-quality steel poles manufactured from qualified materials by professional workers using advanced equipment.
Raw material test → Cutting → Molding/Bending → Welding (longitudinal) → Dimension verification → Flange welding → Hole drilling → Calibration → Deburring → Galvanization/Powder coating/Painting → Recalibration → Threading → Packaging
Material Quality Assurance
All materials are sourced from reputable mill factories. Each shipment includes a mill certificate with stamp and signature. Materials undergo chemical and physical analysis before production to verify strength and composition.
Certifications

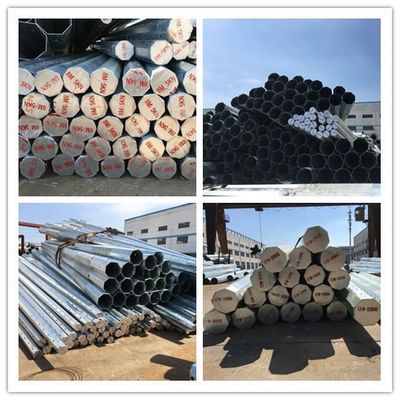

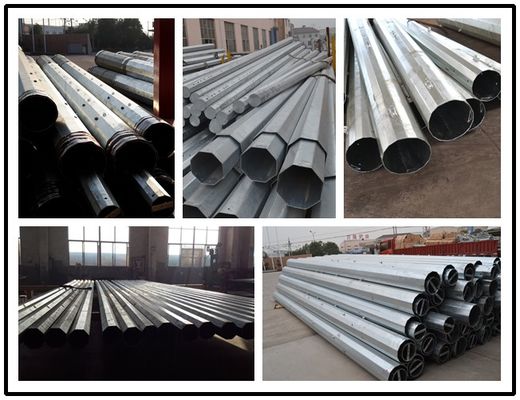

Project Examples
Ordering Information
- Price Terms: EXW, FOB, CFR, CIF
- MOQ: 1 set for customized orders
- Payment: 30% deposit by T/T, balance before shipment
- Delivery: Ready within 10 working days after deposit
- Warranty: 30 years
- Surface Treatment: Hot dip galvanization standard
Our Services
Pre-Sales Service
- Inquiry and consulting support
- 24-hour response time
- Factory visits available
After-Sales Service
- Installation training
- Inspection reports and material certificates provided

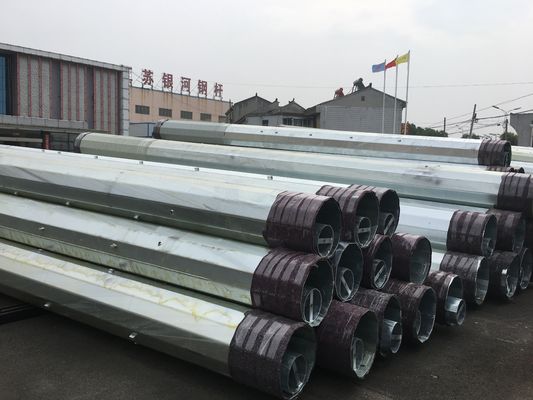

Packaging & Shipping
| Type | Quantity |
|---|---|
| 40&45FT Electric poles for Philippine Market | 26 Tons/40HQ Containers |
| 35FT Electric poles for Philippine Market | 26 Tons/40HQ Containers |
About Our Company
Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, near Shanghai Port. Our products are widely used in power transmission, signal transmission, and street/road lighting applications. With export experience since 1991, our poles have been delivered to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, and Malaysia.
