16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation
16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation
基本プロパティ
原産地:
江蘇、中国
ブランド名:
Milky Way
モデル番号:
電気電源ポール
取引物件
最低注文数量:
500
価格:
$180
製品概要
16m 800DaN 1000DaN 1250DaN Galvanized Electric Power Transmission Tubular Steel Pole Material Quality Assurance Material Testing Process All materials are sourced from reputable mill factories to ensure quality Mill certificates with official stamps and signatures are required before unloading ...
製品カスタム属性
ハイライト
16m Electric Power Transmission Pole
,800DaN Steel Power Pole
,1000DaN Galvanized Steel Pole
物質的な強さ:
345 Mpa
表面処理:
ガルバニゼーション
保護レベル:
IP 65
厚さ範囲:
1-30のmm
サイズ範囲:
20-120フィート
形状のオプション:
多角形、丸
インストールタイプ:
直接埋葬またはフランジ
亜鉛めっきの標準:
IS2629-1985、BS729-1971
降伏強度:
≥345 MPa
極の高さ:
16 M
負荷容量:
800dan、1000dan、1250dan
溶接タイプ:
縦方向の溶接
切断方法:
CNCレーザー切断
形成方法:
鋼板曲がること
ポーランド人のタイプ:
管状鋼
製品説明
詳細な仕様と特徴
16m 800DaN 1000DaN 1250DaN Galvanized Electric Power Transmission Tubular Steel Pole
Material Quality Assurance
Material Testing Process
- All materials are sourced from reputable mill factories to ensure quality
- Mill certificates with official stamps and signatures are required before unloading materials
- All materials undergo chemical and physical analysis before production to verify strength and composition
Product Introduction
Project Applications
Product Specifications
Manufacturing Process
Material Testing
All raw materials (steel plates) require mill certificates from the factory. Upon arrival, quality control performs elongation tests and chemical composition analysis to verify compliance with standards before production begins.
Plasma Cutting
Certified materials are precision-cut using CNC laser cutting technology guided by motion control systems following CNC/G-code patterns, resulting in edges with superior surface finish.
Forming
Cut steel plates are formed into specified shapes (circular, polygonal, etc.) using specialized bending machines for metal stock.
Welding
Formed plates are welded longitudinally using AC inverter-controlled systems with seam-tracking arc-guide mechanisms for precision alignment and stable operation.
Galvanization
All poles receive complete hot-dip galvanization (internal and external) meeting IS2629-1985 and BS729-1971 standards for superior corrosion protection.

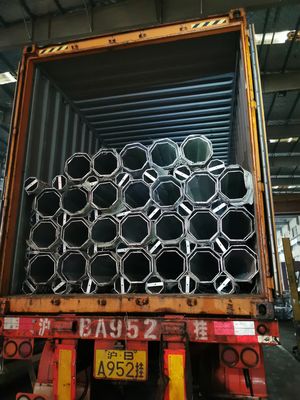

Packaging & Shipping
Product Range
We manufacture various steel poles including: power transmission poles, street lighting poles, high mast lighting poles, traffic signal poles, telecom towers, and flag poles. All products undergo cutting, bending, forming, automated welding, quality checks, and hot-dip galvanizing or powder coating.
Business Terms
- Pricing: EXW, FOB, CFR, or CIF (includes pole shaft, base plate, cross arm, and anchor parts)
- MOQ: 1 set
- Payment: 30% deposit by T/T, balance before shipment (other methods negotiable)
- Lead Time: 10 workdays for 30 sets after deposit receipt
- Design Service: 20-year support period
Frequently Asked Questions
How can I get a price quote?
Provide exact dimensions (height, thickness, material, diameters) or send drawings for accurate pricing.
Do you accept small orders?
Yes, we welcome small wholesalers and are happy to grow together with our clients.
Can you produce custom-designed samples?
We specialize in bringing custom designs to reality and welcome collaboration with designers.
How do I become an agent?
Submit your business profile and market strategy to delia@yin-he.com for consideration.
