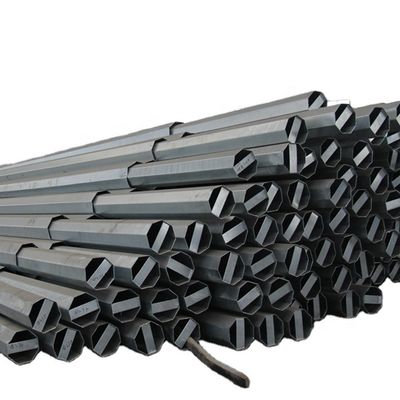

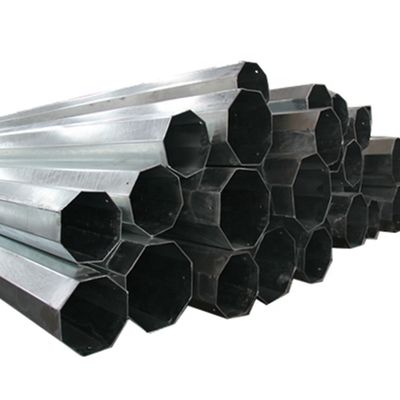

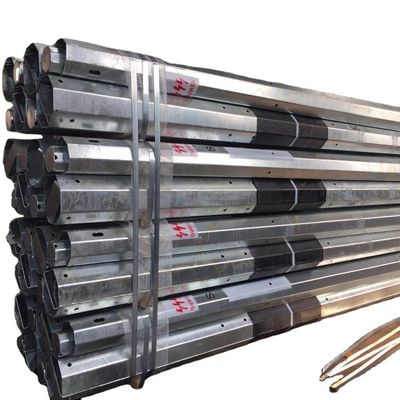

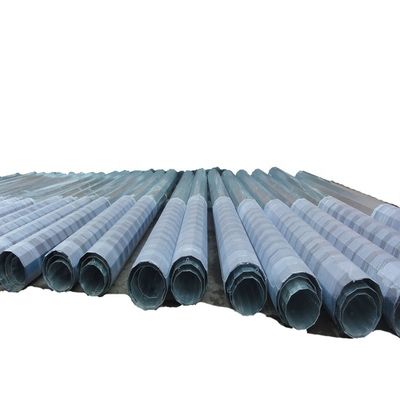

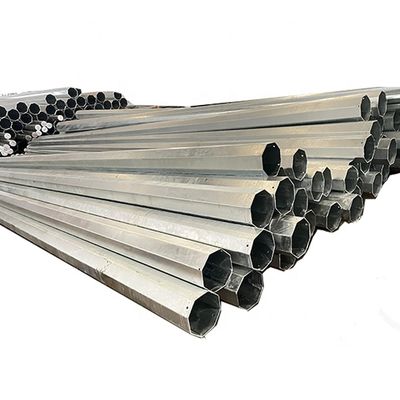

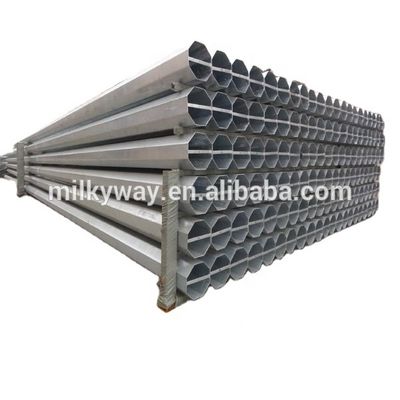

High-quality galvanized steel poles available in 6m, 9m, 12m, 20ft, 25ft, and 30ft lengths with octagonal or round configurations.
| Type | 450Mpa Min Yield Stress Electrical Power Pole, Cross Arm Galvanised Steel Poles |
|---|---|
| Application | Electricity distribution |
| Shape | Conoid, Multi-pyramidal, Columniform, Polygonal or Conical |
| Material | Q235, Q345, Q420 |
| Power | 10KV ~550KV |
| Design Load | 300~1000Kg applied to 50cm from the top pole |
| Surface Treatment | Hot dip galvanized (ASTM A 123), color polyester powder, or client-specified standard |
| Joint Types | Insert mode, inner flange mode, face to face joint mode |
| Seismic Rating | Designed against earthquake of 8 grade |
| Standard | ISO 9001 |
| Welding | Internal and external double welding (AWS D1.1 standard), passed flaw testing |
| Thickness | 2.5mm |
All raw materials include mill certificates and undergo elongation tests and chemical composition analysis before production.
CNC laser cutting precisely shapes materials according to specifications, leaving high-quality surface finishes.
Steel plates are formed into specified shapes (circular, polygonal, etc.) using precision bending machines.
Longitudinal welds are performed using AC inverter control with seam-tracking arc-guide mechanisms for perfect alignment.
All poles receive complete hot-dip galvanization (IS2629-1985, BS729-1971 standards) for superior corrosion protection.
Jiangsu Milky Way Steel Poles Co., Ltd. - Established in 1991, located in Wuxi, China. Our products are used worldwide in power transmission, signal transmission, and street/road lighting applications.
With over 20 years of manufacturing experience, we've exported to more than 70 countries including USA, Australia, Russia, Germany, Spain, and throughout Asia.
| Packing Size | 40HQ |
|---|---|
| Weight | 26T |
Poles are packed with sea/road-worthy wooden materials. Loading capacity per container varies based on specifications.
Provide exact dimensions (height, thickness, material, diameters) or send drawings for accurate pricing.
Yes, we work with wholesalers of all sizes and support business growth.
We welcome custom designs and will work to make your specifications a reality.
Submit your business profile and market plan to delia@yin-he.com.
Yes, we provide complete shipping solutions including customs clearance.
