10mm Commercial Outdoor Digital Steel structure Billboard Advertising P16 With LED Screen
|
Items |
Parameter |
|
LED Encapsulation |
DIP 346 |
|
Pixel Pitch |
10mm |
|
Module Resolution(W*H) |
32* 32 |
|
Module Size |
320*320mm |
|
Pixel Configuration |
1R1G1B(3 in1) |
|
Pixel Density |
10000 pixel/sqm |
|
Driving Method |
1/2 scanning |
|
Refresh Frequency |
≥1000Hz(Supporting high refresh rate and depending on system configuration) |
|
Driving IC |
Special constant current IC with high refresh rate and high gray scale |
|
Grey Scale |
>14BIT(According to system and IC equipped) |
|
White Balance Brightness |
>7000cd/sqm |
|
Color Temperature |
8000K ± 500(adjustable) |
|
Viewing Angle |
Horizontal Angle 100° Vertical Angle 50° |
|
Optimal Viewing Distance |
>10m |
|
Working Voltage |
DC4.2V |
|
Max Power Consumption |
12W/pcs(White Balance) |
|
Avg Power Consumption |
6W/pcs(Normal Working) |
|
Lifetime |
50000 Hours |
|
Operating Temperature |
-10℃ ~50℃ |
|
Weight |
0.6kg/pcs |
Application scopes:
Widely applied to traffic information distribution of station,quay and qirport,conference,shoppingmall,brand presentantion,TVstation,stageshow,concert and so on.
Specifications:
|
Item |
V6-P10 LED Outdoor Vehicle Outdoor Billboard Advertising With Backinglighting |
|
Material |
Steel,Q235 |
|
Height |
12M-30M |
|
Width |
6M-18M |
|
Sides |
Single sides, double sides, triple sides or customized |
|
Usage |
Highway, Airport Outdoor Advertising |
|
Connect |
Welding connection |
1. 1-2 years warranty.
2. LUXON assists with training and technical support for the customer in the factory, if required. You can also send your engineer to our factory at any time for LED display training. This service is free of charge.
3. Customer satisfaction tracking report.
4. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours
5. Special service for big project, such as TV station
'

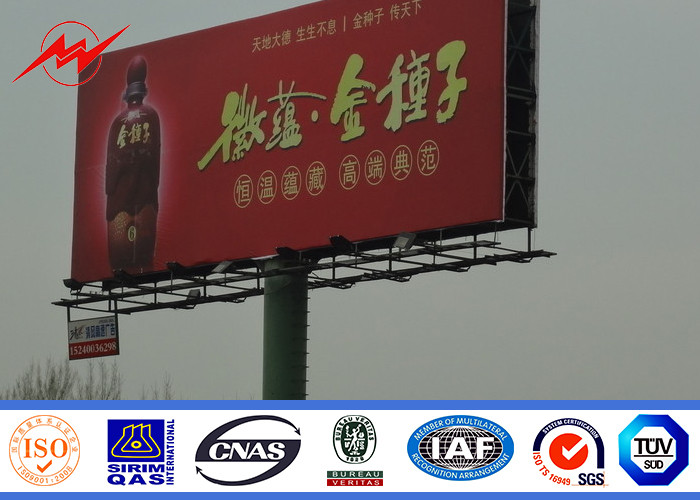

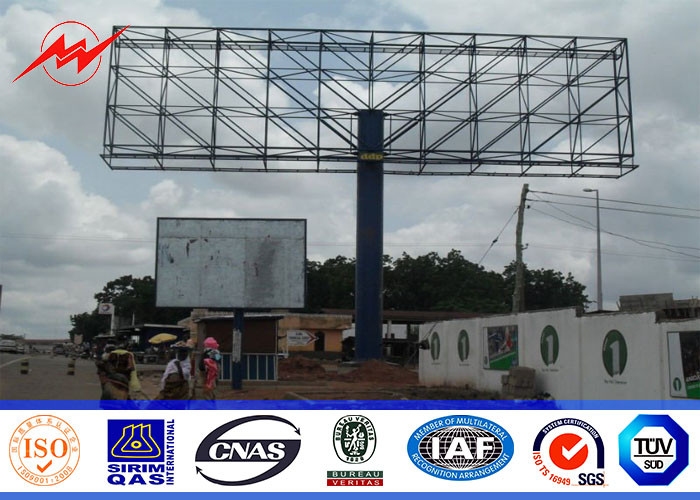

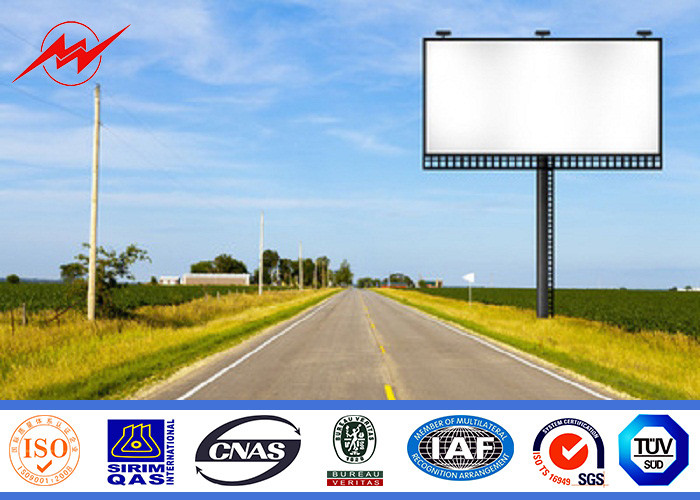

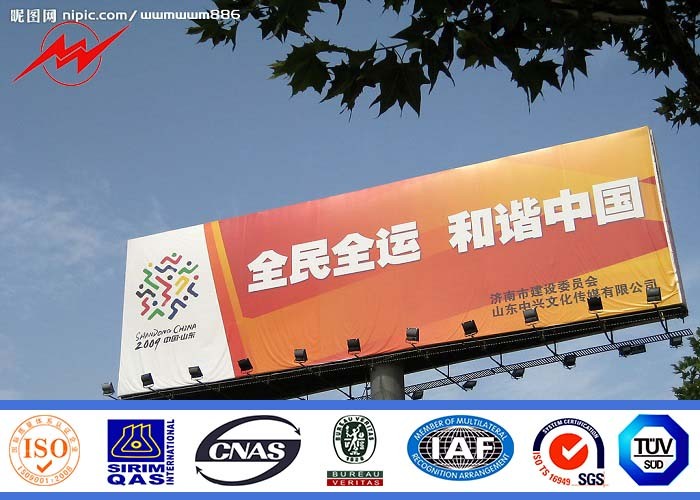

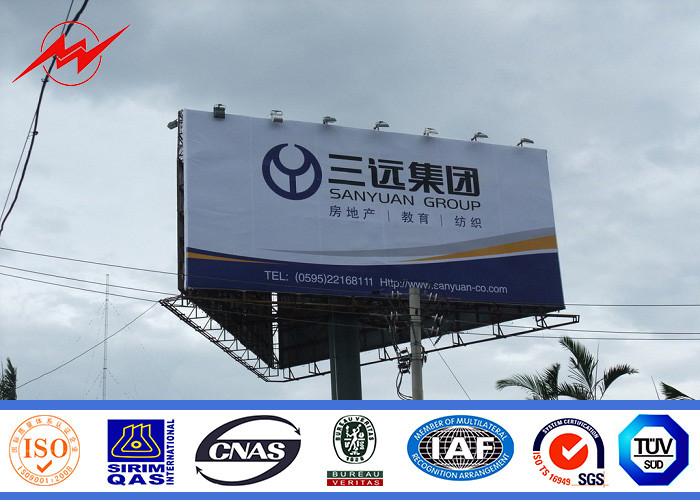

1. The billboard specification of Steel of Q235
2. The Billboard can resist the wind speed at 100km/h
3. Anti-rust and Anti-Ultraviolet surface. The paint can prevent wind abrasion and high temperature and high earthquake resistance.
4. Ensure the service lifetime for 10 years
5. Easy pictures changing.
6. Easy installation with installation instructions
7. Supply Ability of 200sets a month.
