Product Name: | Galvanized Power Pole | Shape: | Octagonal Or Round |
---|---|---|---|
Power Capacity: | 10kV to 220kV | Joint of Poles: | Slip joint |
Warranty time: | 15 years | Thickness: | 1 mm to 36mm |

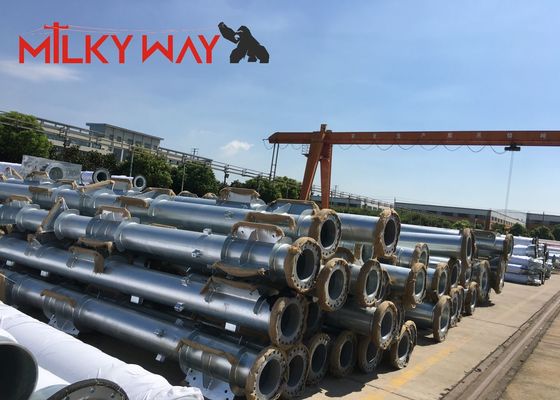

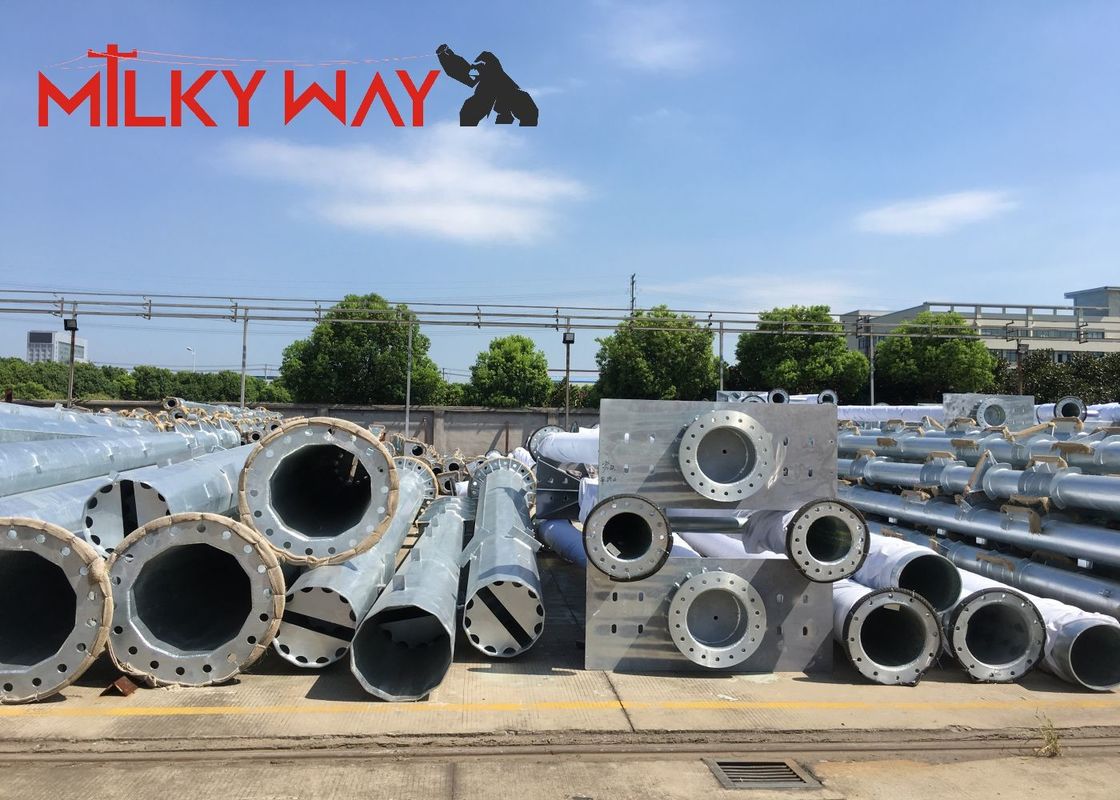

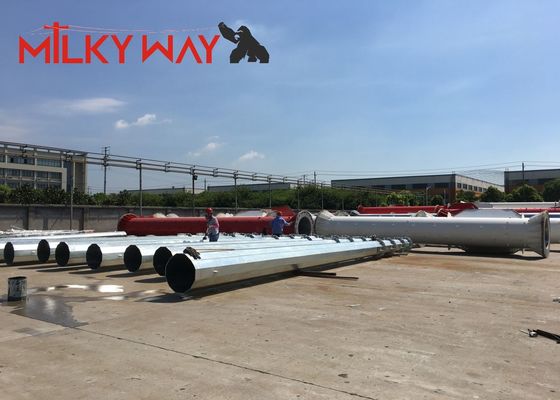

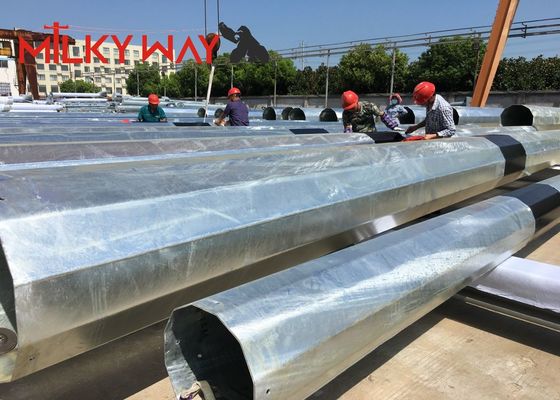

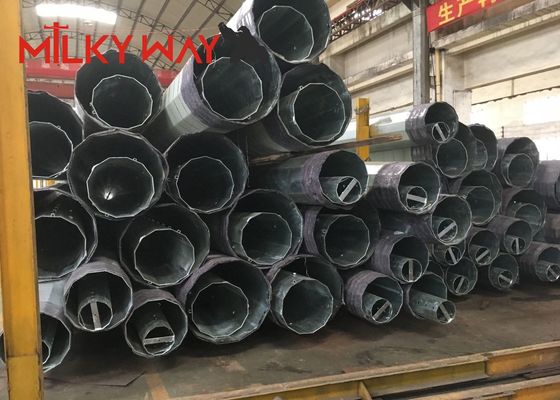

14m-21m Galvanized Steel Power Transmission Poles for Utility Line
Steel
All of our material are purchased from famous mill factory to assure the quality
A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.
Specifications:
Types Length |
45ft | 50ft | 55ft | 60ft | 65ft | 70ft |
13.75m | 15.25m | 16.80m | 18.30m | 19.85m | 21.35m | |
B ( 0°-2°) | ||||||
Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Butt diameter (mm) | 345 | 370 | 395 | 415 | 435 | 455 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
E ( 2°-15°) | ||||||
Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Butt diameter (mm) | 545 | 585 | 625 | 660 | 700 | 740 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
C ( 15°-30°) | ||||||
Top diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
Butt diameter (mm) | 600 | 645 | 690 | 730 | 770 | 805 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
D ( 30°-90°) | ||||||
Top diameter (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
Butt diameter (mm) | 680 | 730 | 725 | 765 | 755 | 790 |
Thickness (mm) | 6 | 6 | 7 | 7 | 8 | 8 |
HS ( 0°-2°) | ||||||
Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Butt diameter (mm) | 340 | 360 | 385 | 400 | 420 | 440 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
HT ( 2°-15°) | ||||||
Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Butt diameter (mm) | 485 | 520 | 550 | 580 | 615 | 645 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
3T ( 15°-30°) | ||||||
Top diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
Butt diameter (mm) | 520 | 540 | 565 | 595 | 615 | 640 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
3D ( 30°-90°) | ||||||
Top diameter (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
Butt diameter (mm) | 585 | 620 | 650 | 680 | 715 | 765 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm
Welding
We have past flaw testing. Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Surface Treatment
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
